Frame:
Uni-directional carbon mainframe and rear triangle, tapered head tube, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts
Fork:

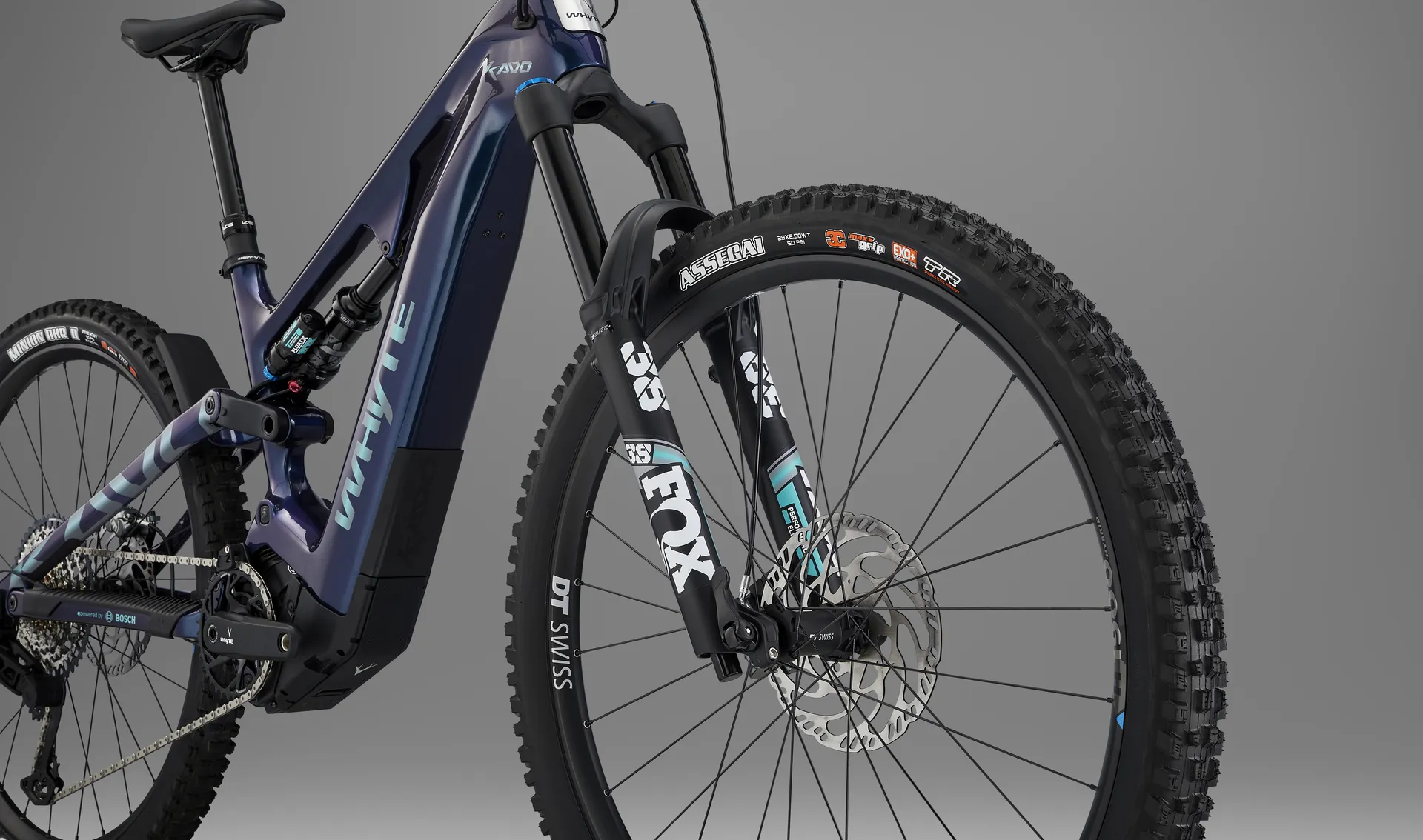

Fox Float 38 Performance Elite, 160mm travel, 44mm offset with Grip X2 damper, tapered steerer, 110mm x 15mm Boost, E-thru-axle

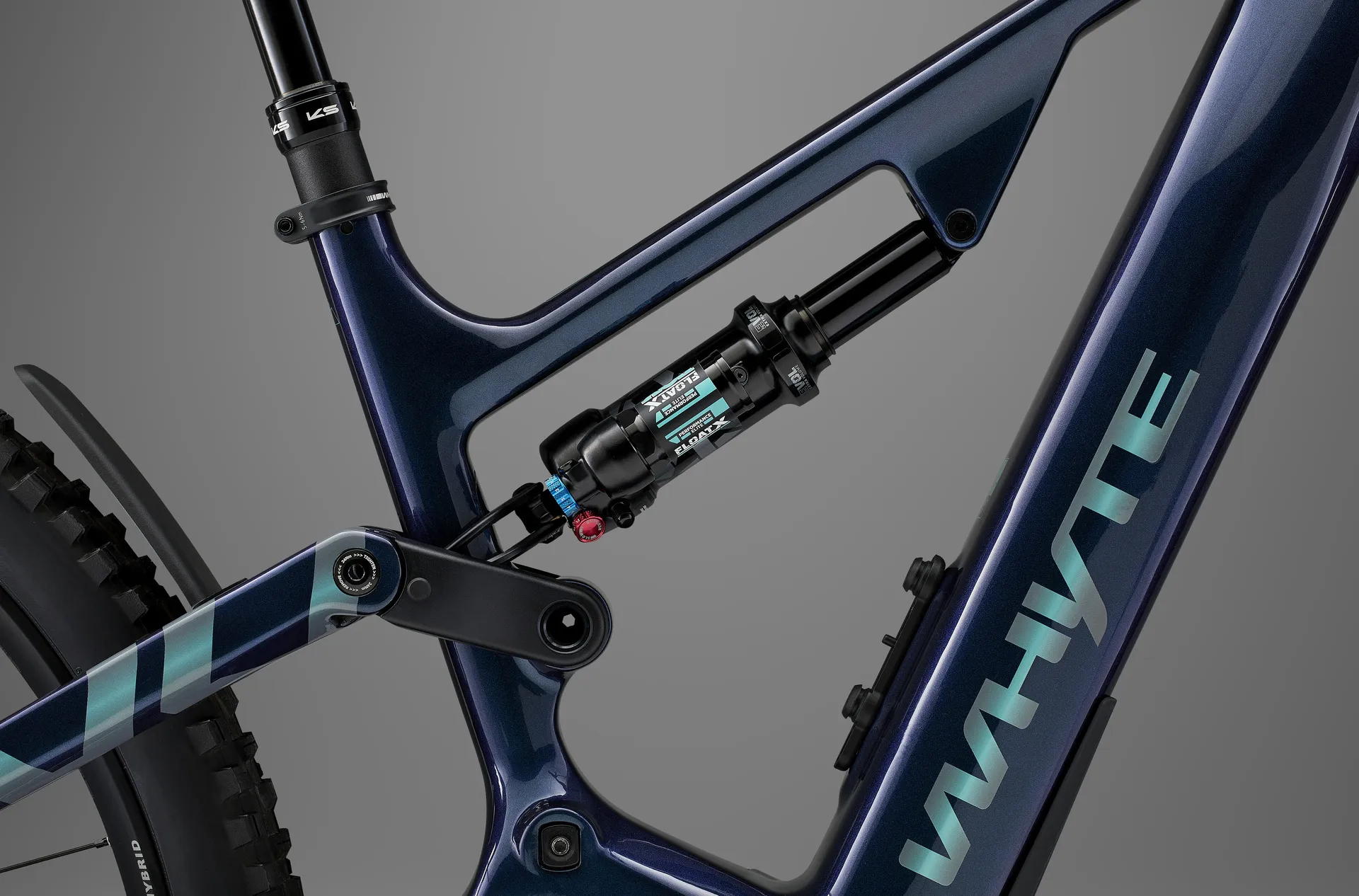

Rear Shock:
Fox Float X Performance Elite DPS, EVOL LV, custom tuned for Whyte
Headset:
FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) cartridge bearings, with side entry internal routing
Rear Hub:
DT Swiss Hybrid H1900, 12mm x 148mm Boost spacing, SRAM XD steel driver, 6 Bolt
Front Hub:
DT Swiss Hybrid H1900, 110mm x 15mm Boost, 6 bolt
Spokes:
DT Swiss elemental
Rims:
DT Swiss Hybrid H1900
Tyre:
Maxxis Assegai WT, TR, 29in x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead, front; Maxxis Minion DHR 2 WT, TR, 29in x 2.4in 120TPI, Double Down Casing, 3C MaxxTerra, Dual Compound, rear

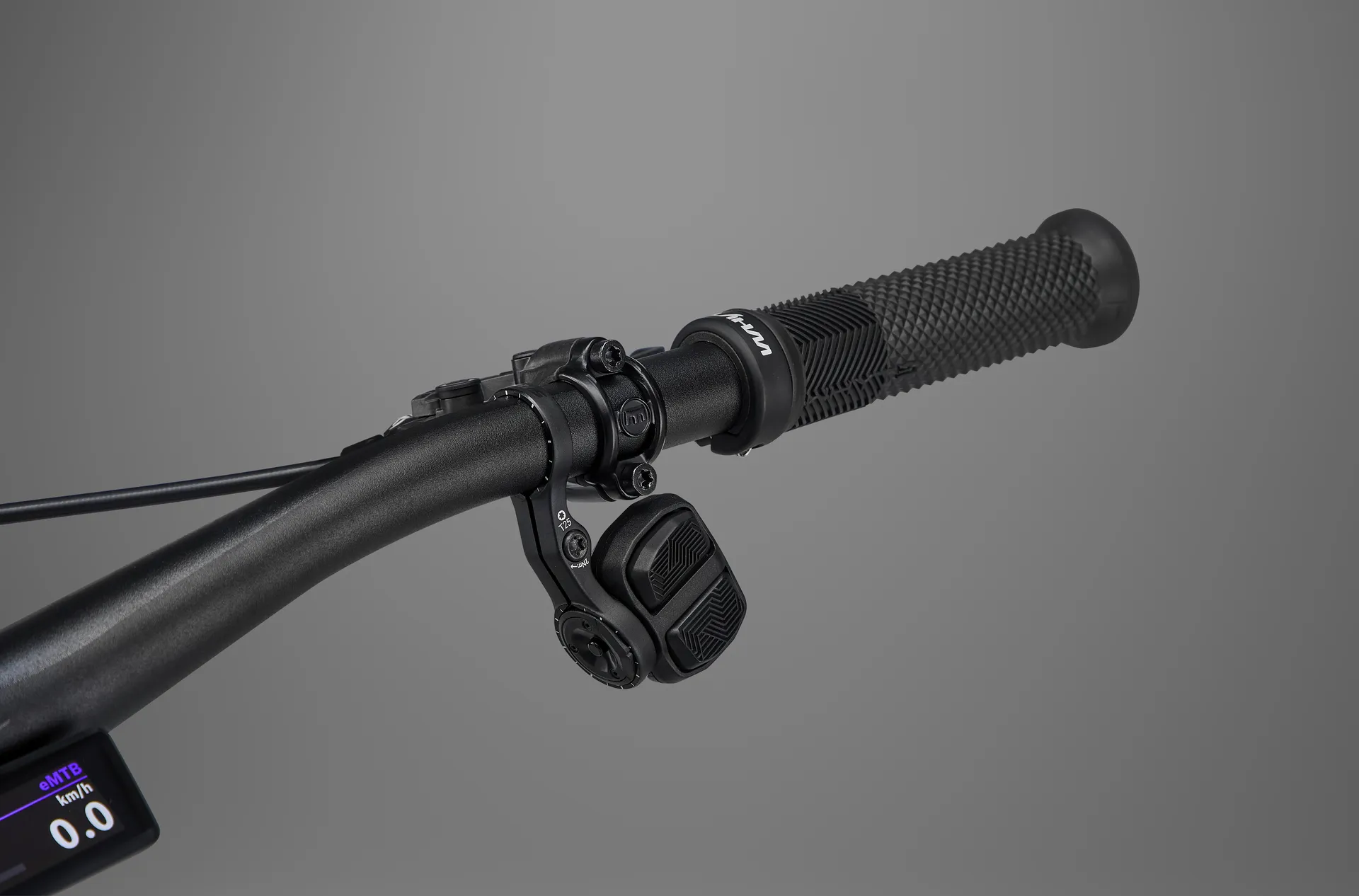

Shift Levers:
SRAM AXS Pod, right, MMX, 12 speed
Front Mech:
N/A

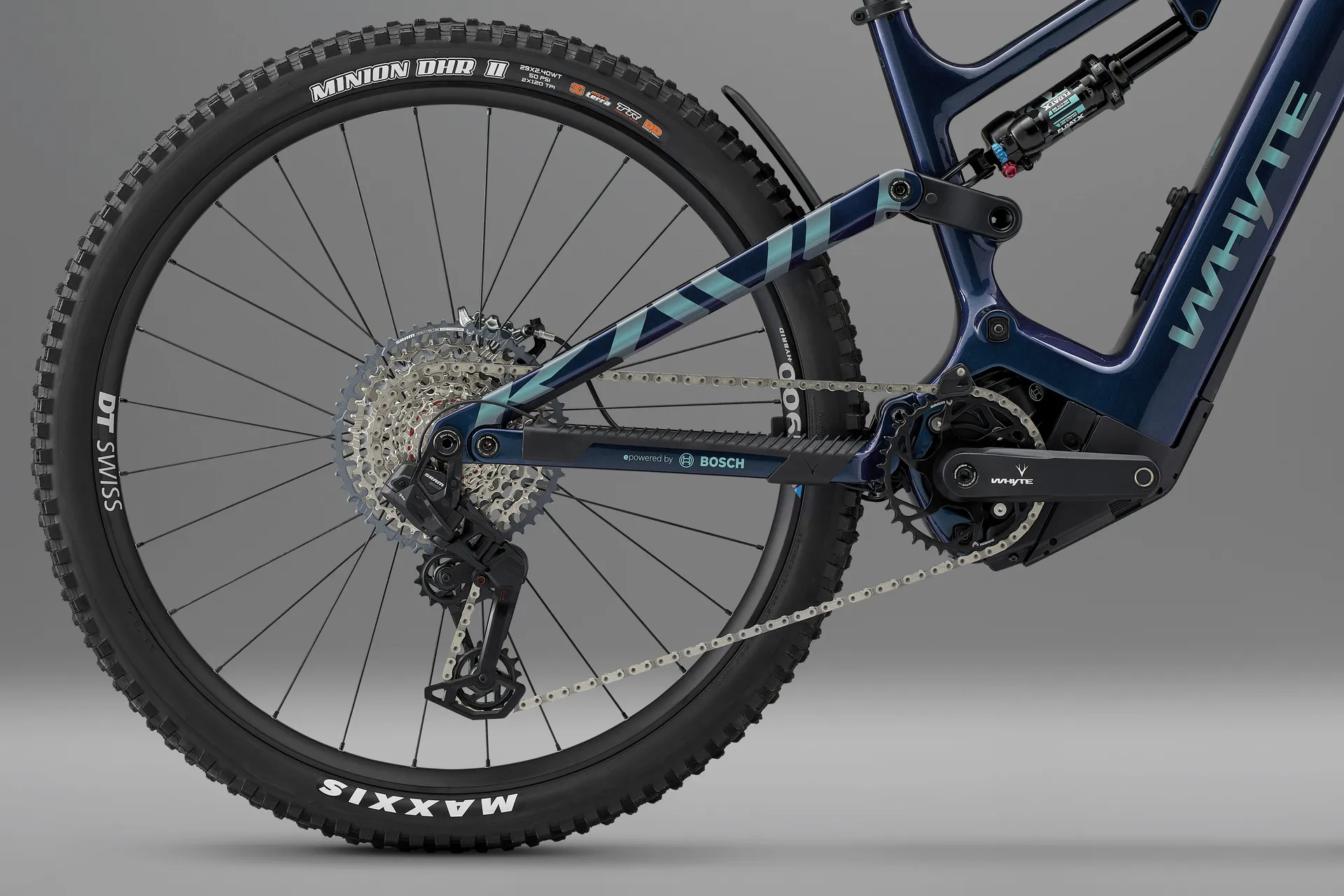

Rear Mech:
SRAM S1000 AXS Eagle, 12 speed
Cassette:
SRAM XS 1275, T-Type, 10-52T, 12 speed
Chain:
SRAM GX T-Type, 12 speed
Crankset:
Whyte 155mm ISIS arms, SRAM Direct mount 36T chainring, T-Type
Bottom Bracket:
N/A
Seatpost:

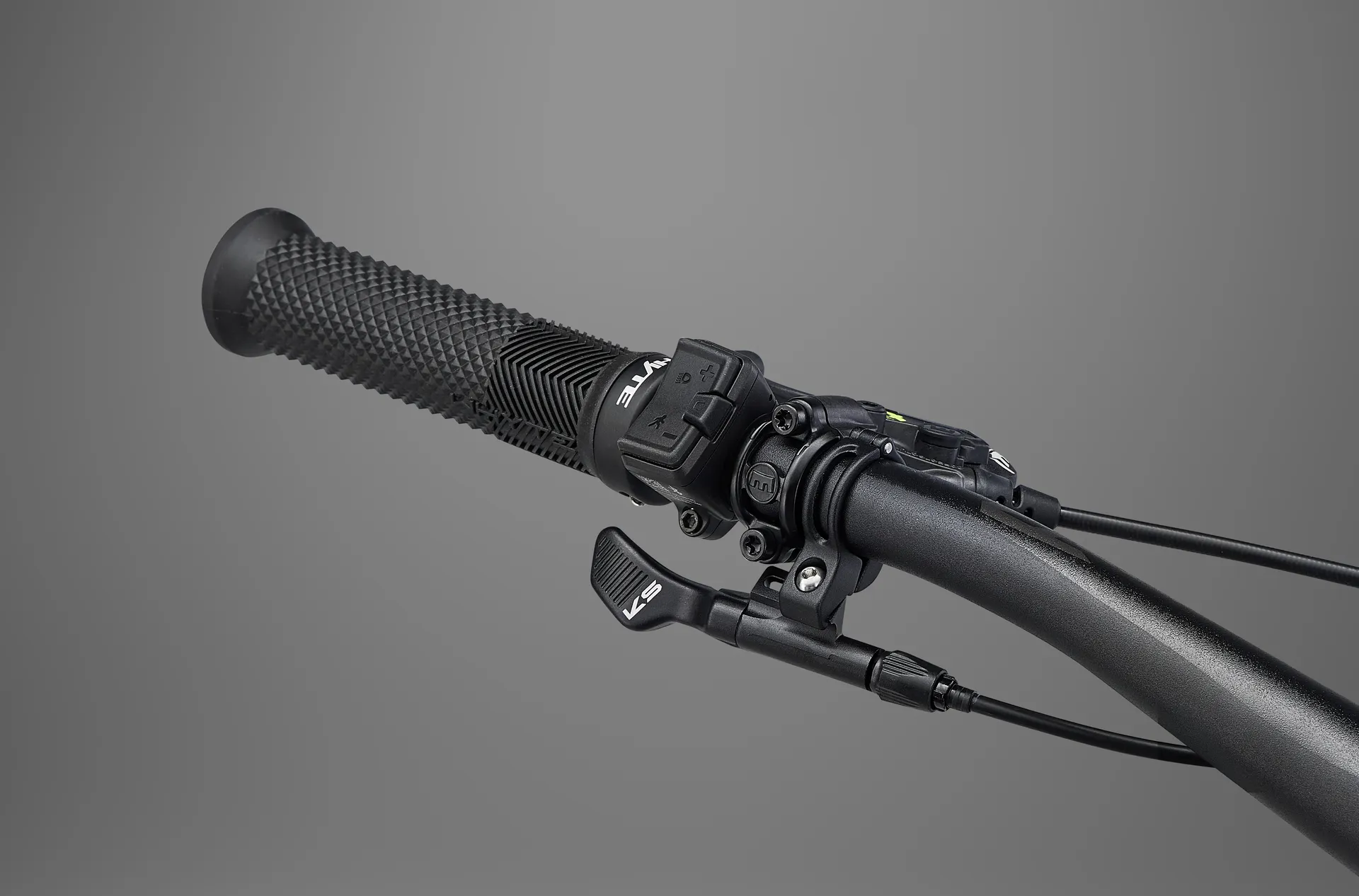

KS Vantage, 34.9mm, external 30mm adjustment, with Southpaw remote lever (150 drop (S), 170mm drop (M), 200mm drop (L&XL))
Saddle:
Whyte Custom
Handlebar:
Race Face Turbine Alloy Bar 35mm, 800mm, 35mm rise
Stem:
Whyte, 35mm Extension, 35mm Bar Bore
Grips:
Whyte Enduro lock-on
Brakes Front:
Magura MT7, 1 finger lever, 203mm MDRC 6 bolt rotors

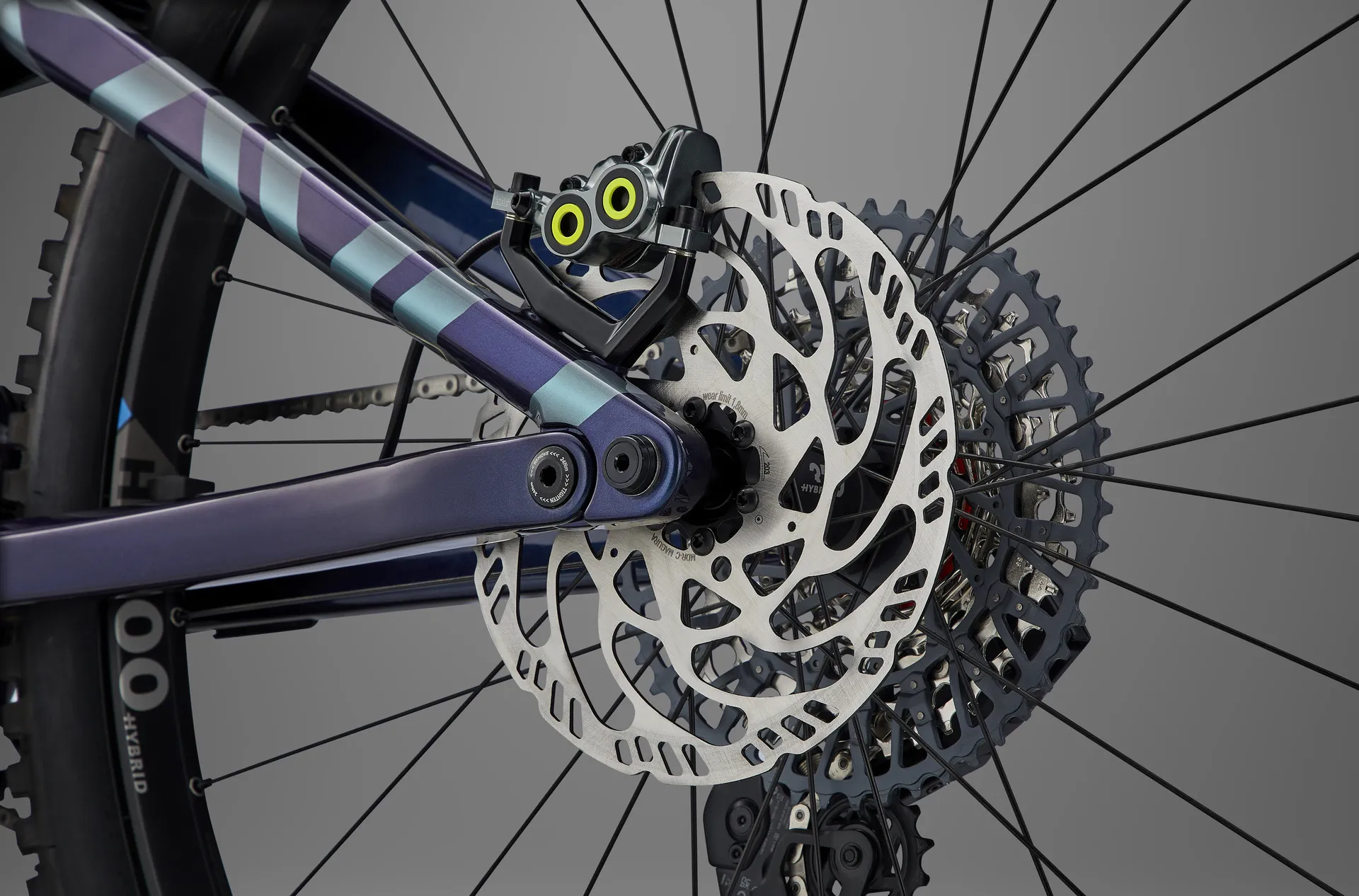

Brakes Rear:
Magura MT7, 1 finger lever, 203mm MDRC 6 bolt rotors

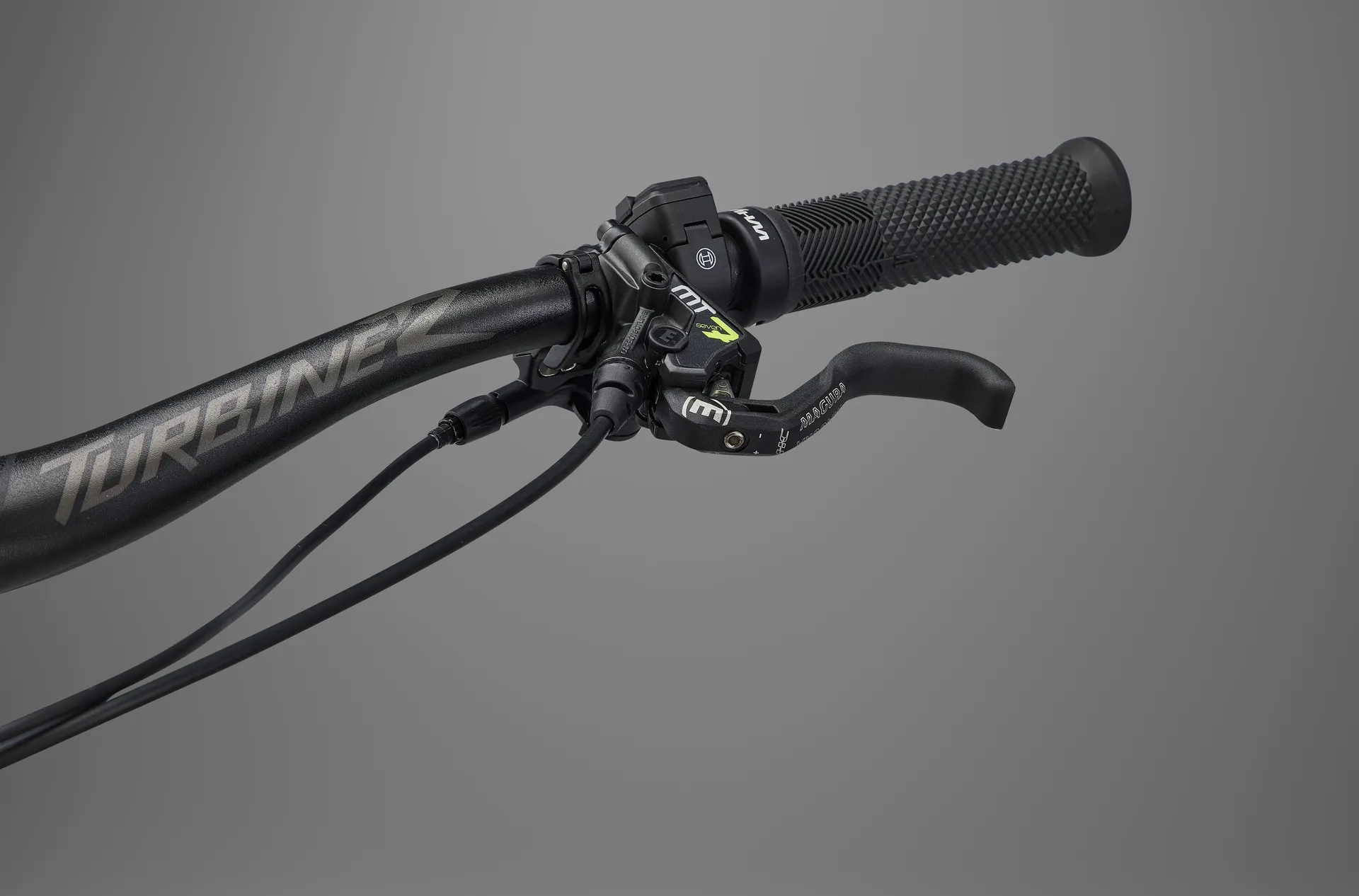

Brakes Levers:
Magura MT7
Pedals:
Fibre reinforced composite platform
eBike Motor:
Bosch Performance Line CX (Smart System) Drive Unit with 85Nm maximum torque, 600W of peak power and 250W of nominal power. Features four power mode settings including Tour+ and eMTB

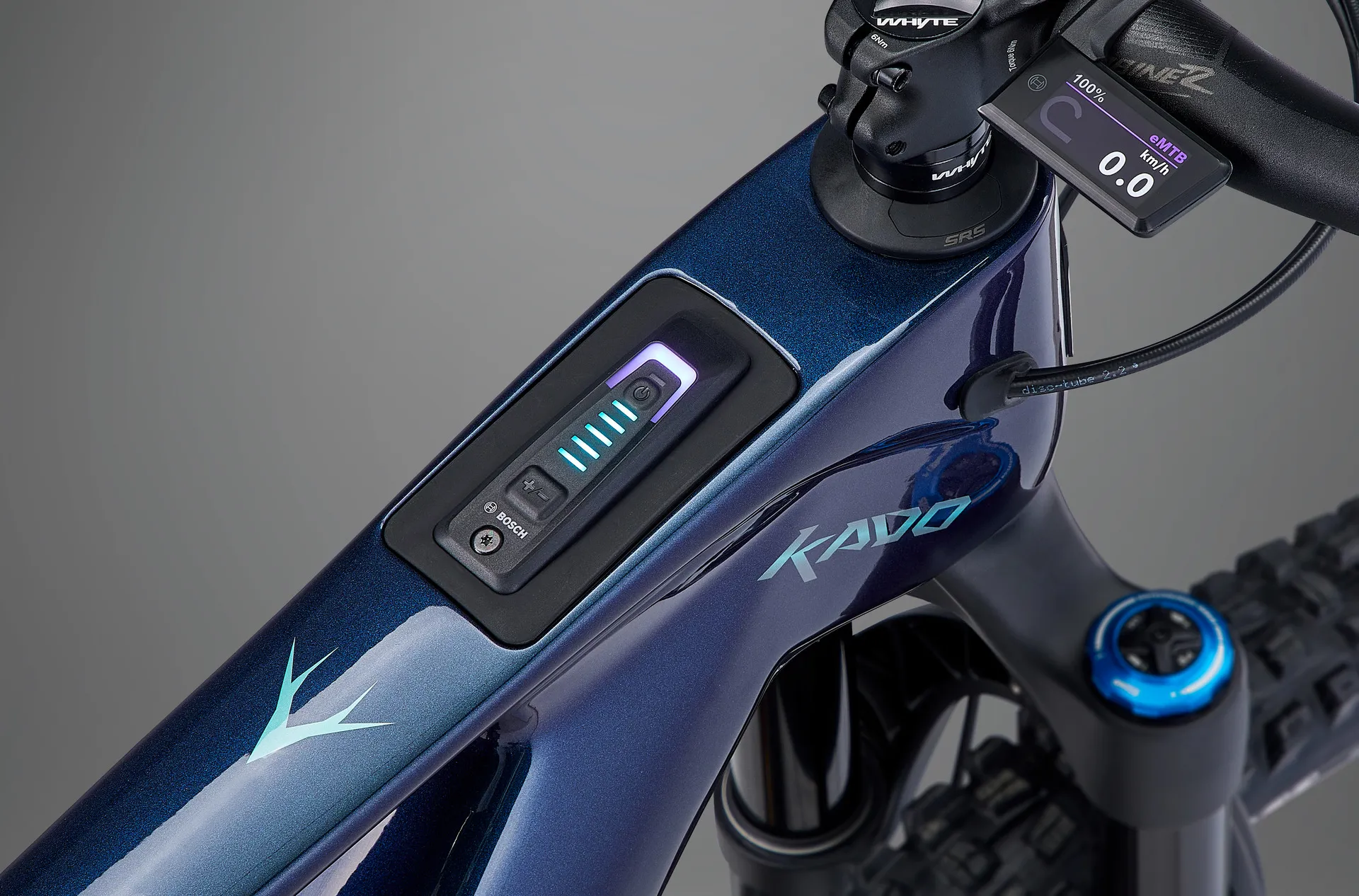

eBike Display:
Bosch System controller mounted within the top tube, paired with the discrete bar mounted Mini Remote and Purion 400. Also connects to the Bosch eBike Flow smartphone app to give you even more insight and control at your fingertips.
eBike Battery:
Bosch PowerTube 800Wh, perfectly integrated into the frame with an intuitive lockable mechanism for easy removal.
eBike Battery Charger:
Charger 4A (230V)
Shock Stroke & Sag:
57.5mm/16mm
Reducer Bush Widths:
25mm
Eye to Eye Length:
230mm
Weight:
TBC
