Frame:
Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts

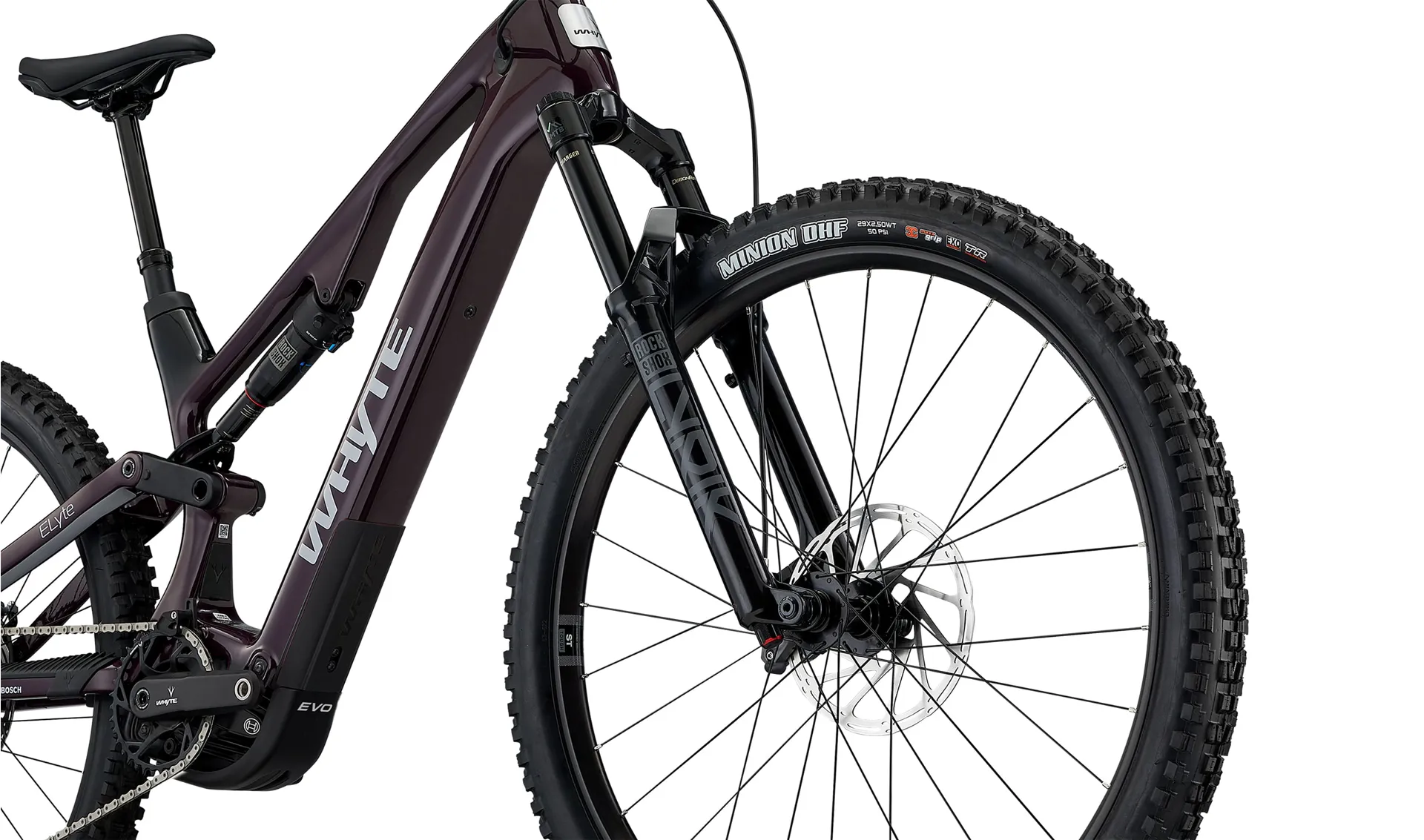

Fork:
RockShox Lyrik Select+, 150mm travel, DebonAir+, Charger 3.1 Damper, Fast Black coating, tapered steerer, 110 x 15mm Boost

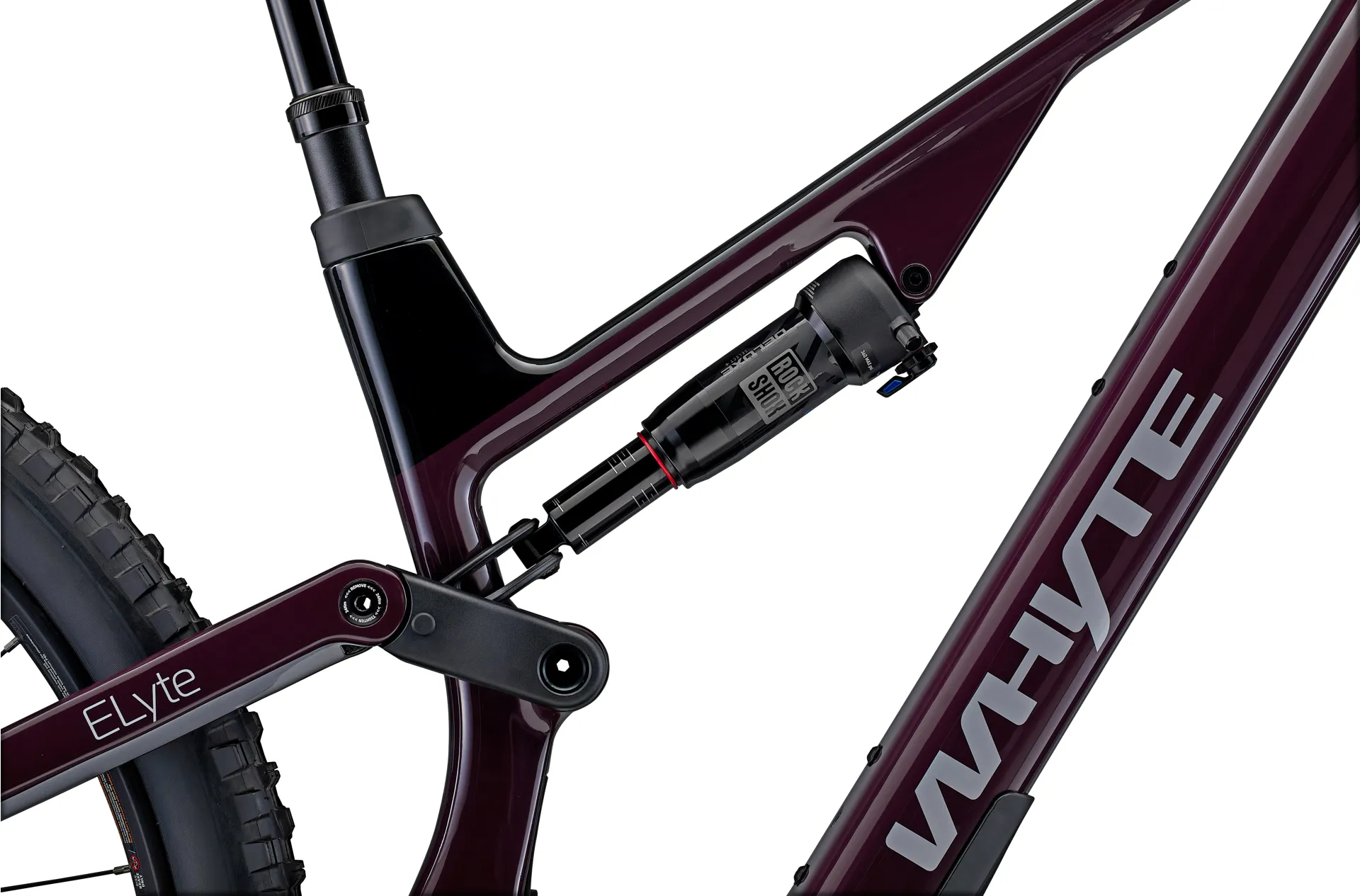

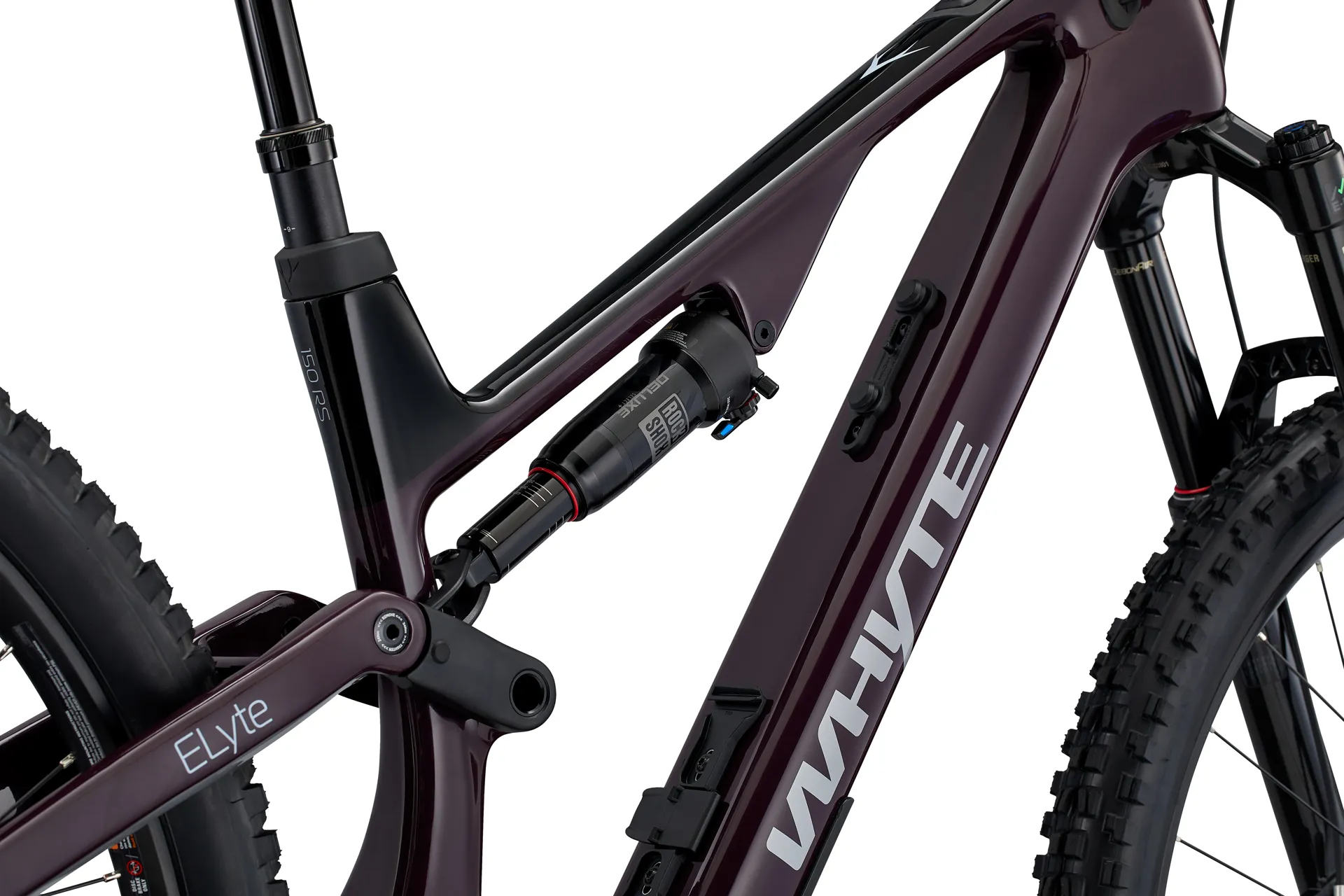

Rear Shock:
RockShox Deluxe Select + RT, DebonAir, Fast Black coating, adjustable rebound and two position compression adjustment, custom tuned for Whyte
Headset:
FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) cartridge bearings, with side entry internal routing
Rear Hub:
Alloy, light assist e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, 32 hole
Front Hub:
Alloy, double sealed cartridge bearings, 15mm x 110mm Boost spacing, 28 hole
Spokes:
DT Swiss Elemental
Rims:
WTB ST Tough, 30mm internal width

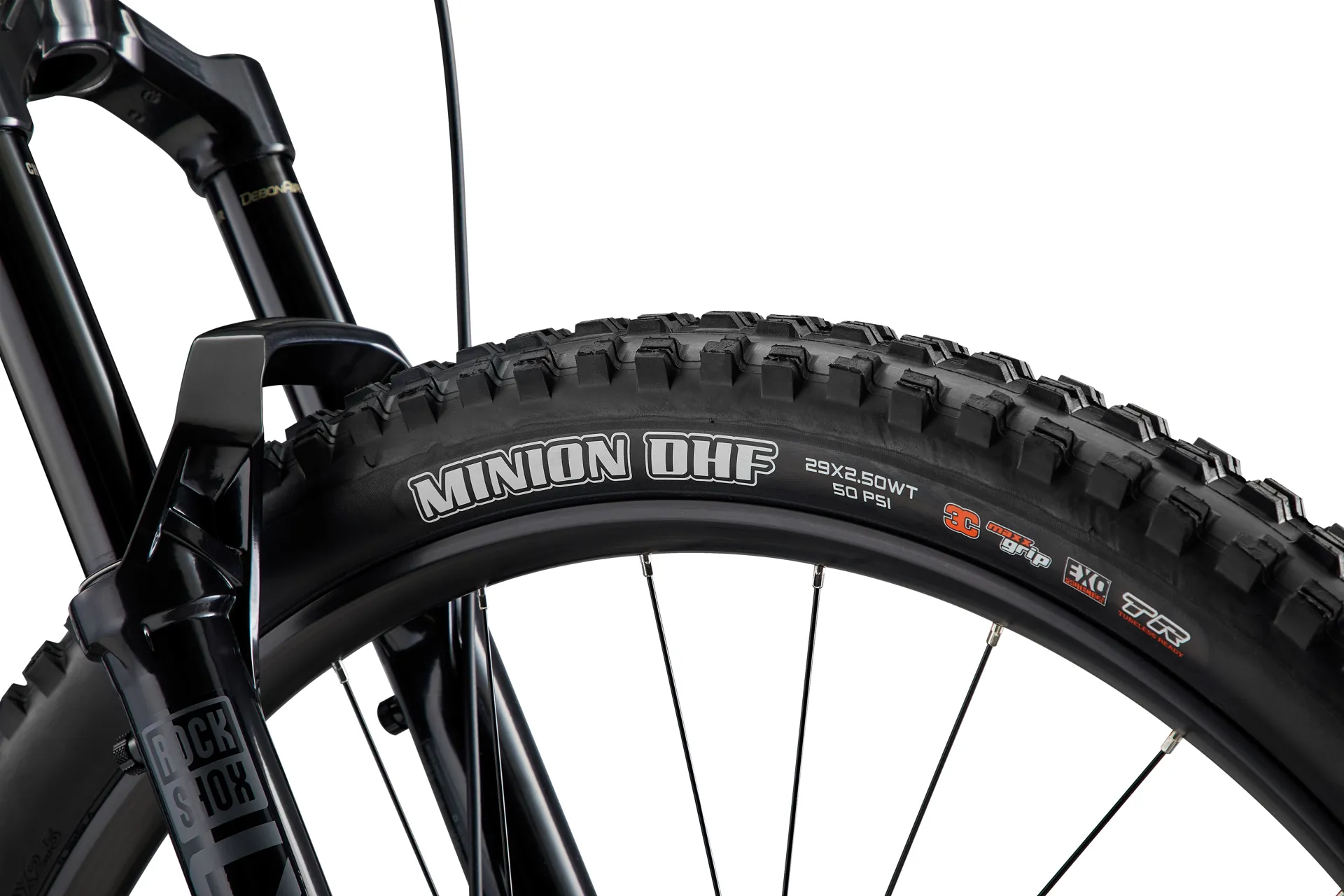

Tyre:
Maxxis Minion DHF, EXO TR MaxxGrip 29in x 2.5in front; Maxxis Dissector, EXO+ TR MaxxTerra 29in x 2.4in, rear
Shift Levers:
SRAM AXS Pod, right, MMX, 12 speed
Front Mech:
N/A

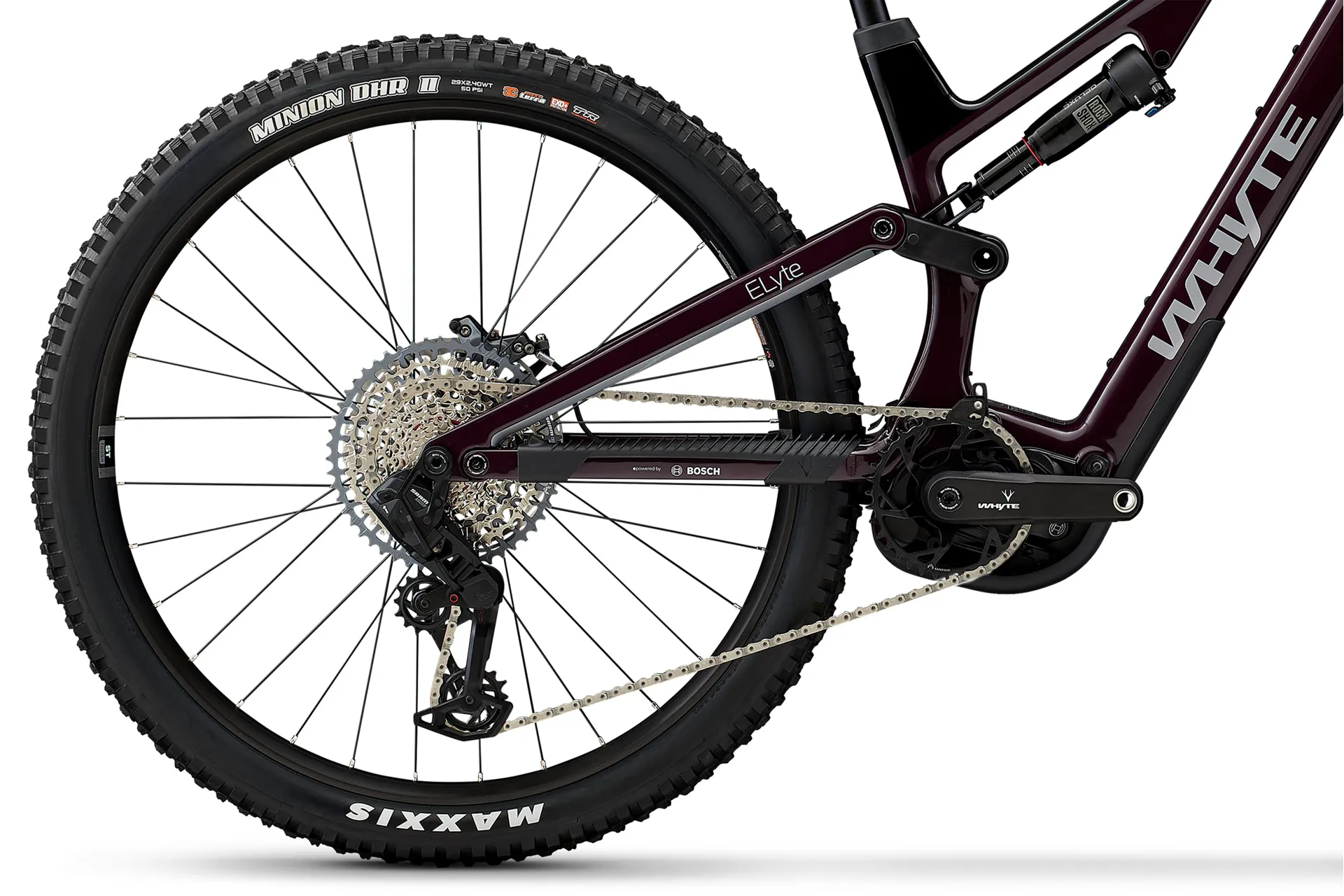

Rear Mech:
SRAM S1000 T-Type AXS, 12 speed
Cassette:
SRAM XS 1270, T-Type, 10-52T, 12 speed
Chain:
SRAM GX T-Type, 12 speed
Crankset:
Whyte 155mm ISIS arms, SRAM Direct Mount 36T chainring, T-Type
Bottom Bracket:
N/A
Seatpost:
TranzX +RAD 30.9mm, Adjustable, 125 drop (S), 150 drop (M), 170mm drop (L), 200mm drop (XL)
Saddle:
Whyte Custom
Handlebar:
Whyte Custom 6061 alloy, 30mm rise, 35mm bar bore, 800mm wide
Stem:
Whyte Trail full CNC, 32mm extension, 35mm bar bore
Grips:
Whyte Enduro lock-on
Brakes Front:
SRAM Code Bronze Stealth, four piston hydraulic, 200mm diameter disc rotor
Brakes Rear:
SRAM Code Bronze Stealth, four piston hydraulic, 200mm diameter disc rotor
Brakes Levers:
SRAM Code Bronze Stealth
Pedals:
Fibre reinforced composite platform

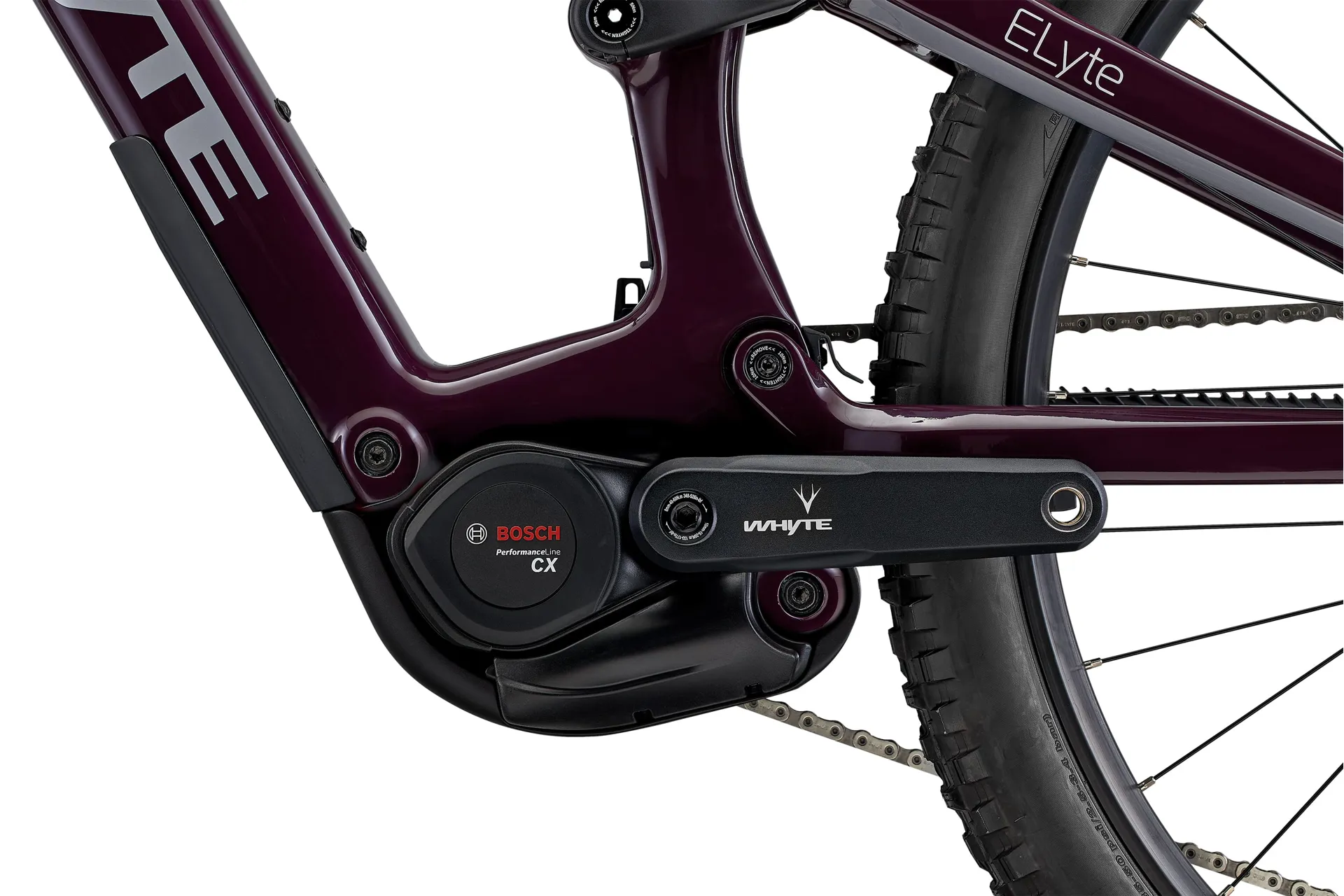

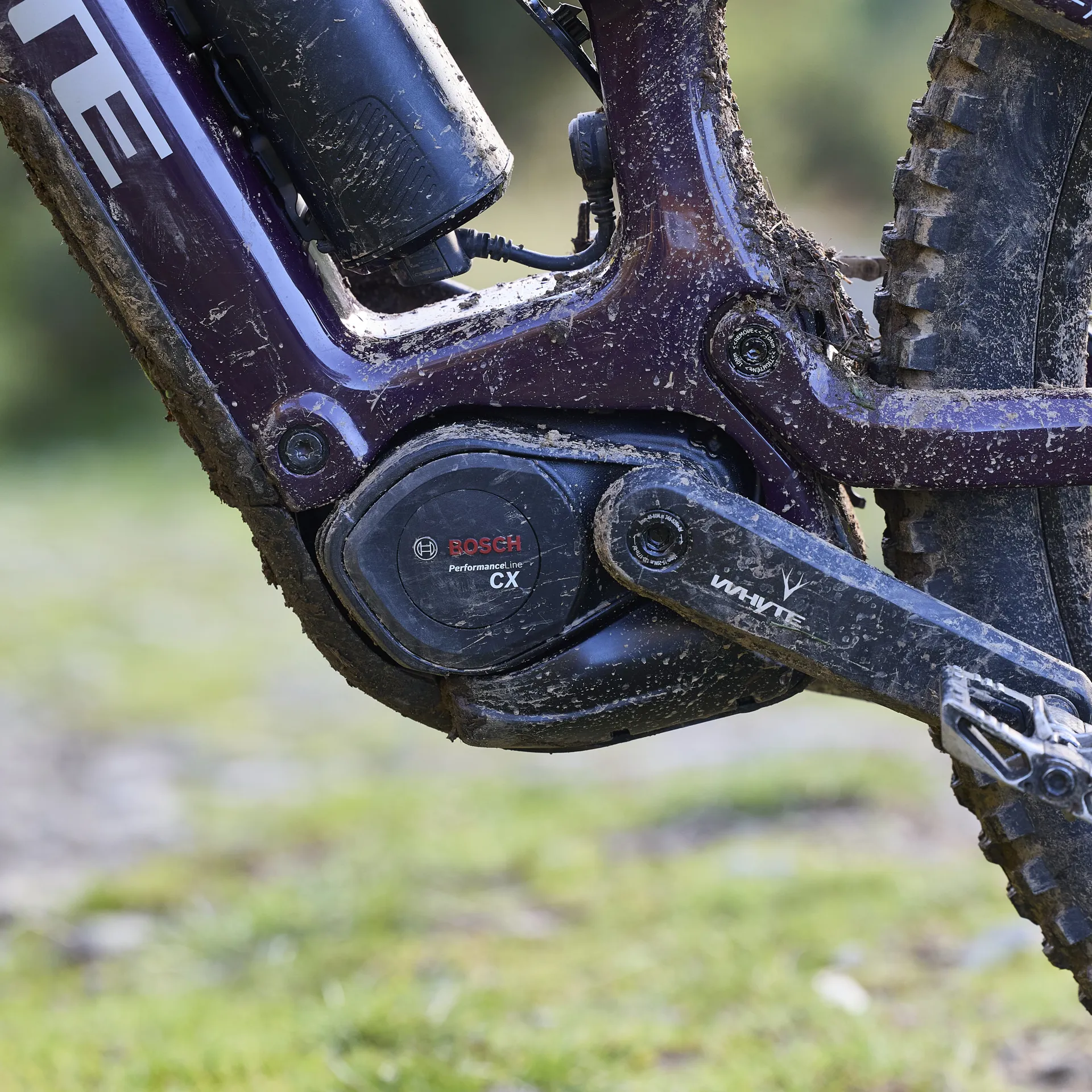

eBike Motor:
Bosch Performance Line CX (Smart System) Drive Unit with 85Nm maximum torque, 600W of peak power and 250W of nominal power. Features four power mode settings including Tour+ and eMTB.

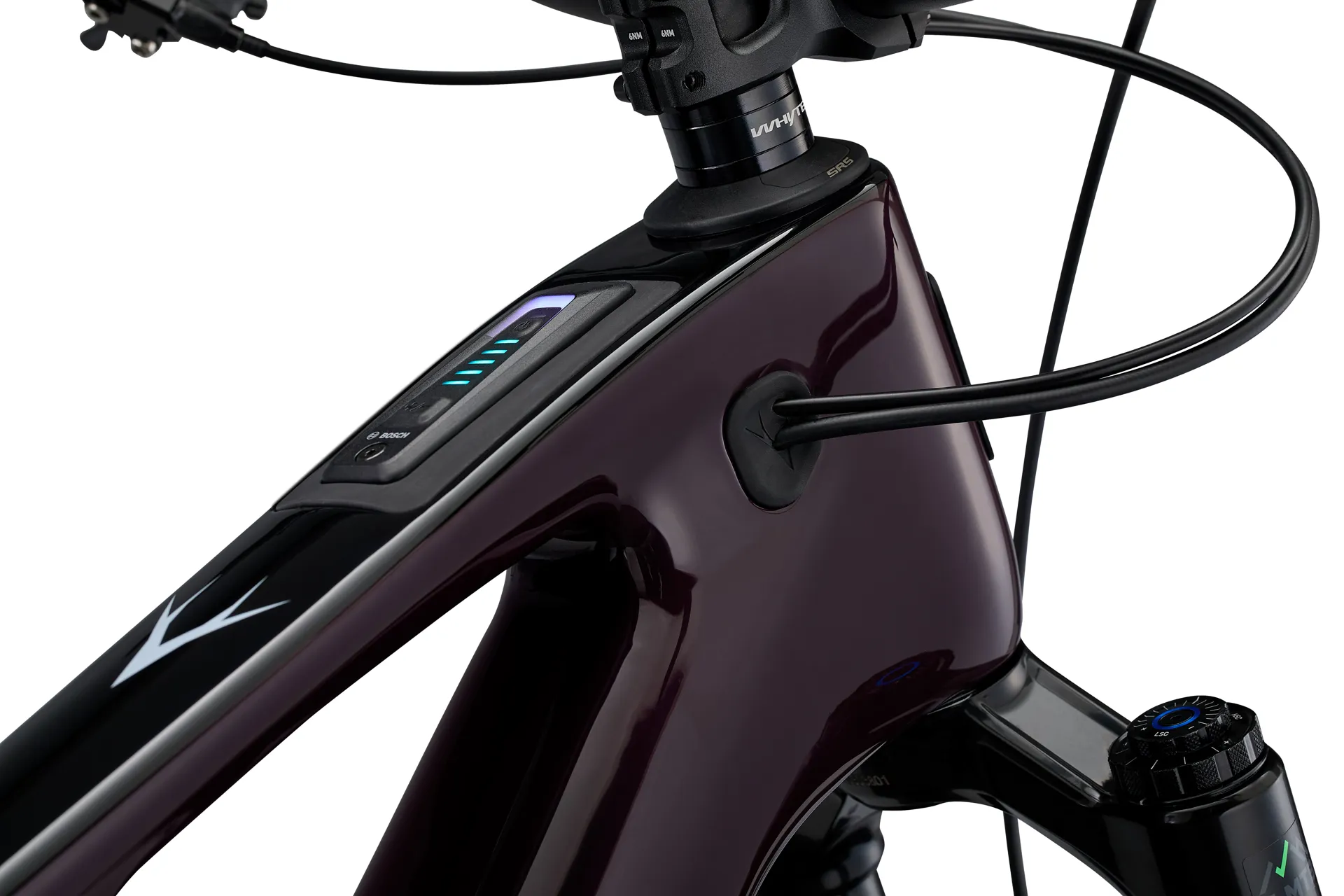

eBike Display:
Bosch System controller mounted within the top tube, paired with the discrete bar mounted Mini Remote. Also connects to the Bosch eBike Flow smartphone app to give you even more insight and control at your fingertips.
eBike Battery:
Bosch Compact PowerTube 400Wh, integrated within the downtube of the frame at the lowest point for stability and control. Also comes with the external, removable 250Wh PowerMore range extender to deliver a combined 650Wh of battery capacity.
eBike Battery Charger:
Charger 4A (230V)
Shock Stroke & Sag:
50mm/14mm
Reducer Bush Widths:
25mm
Eye to Eye Length:
210mm
Weight:
TBC
