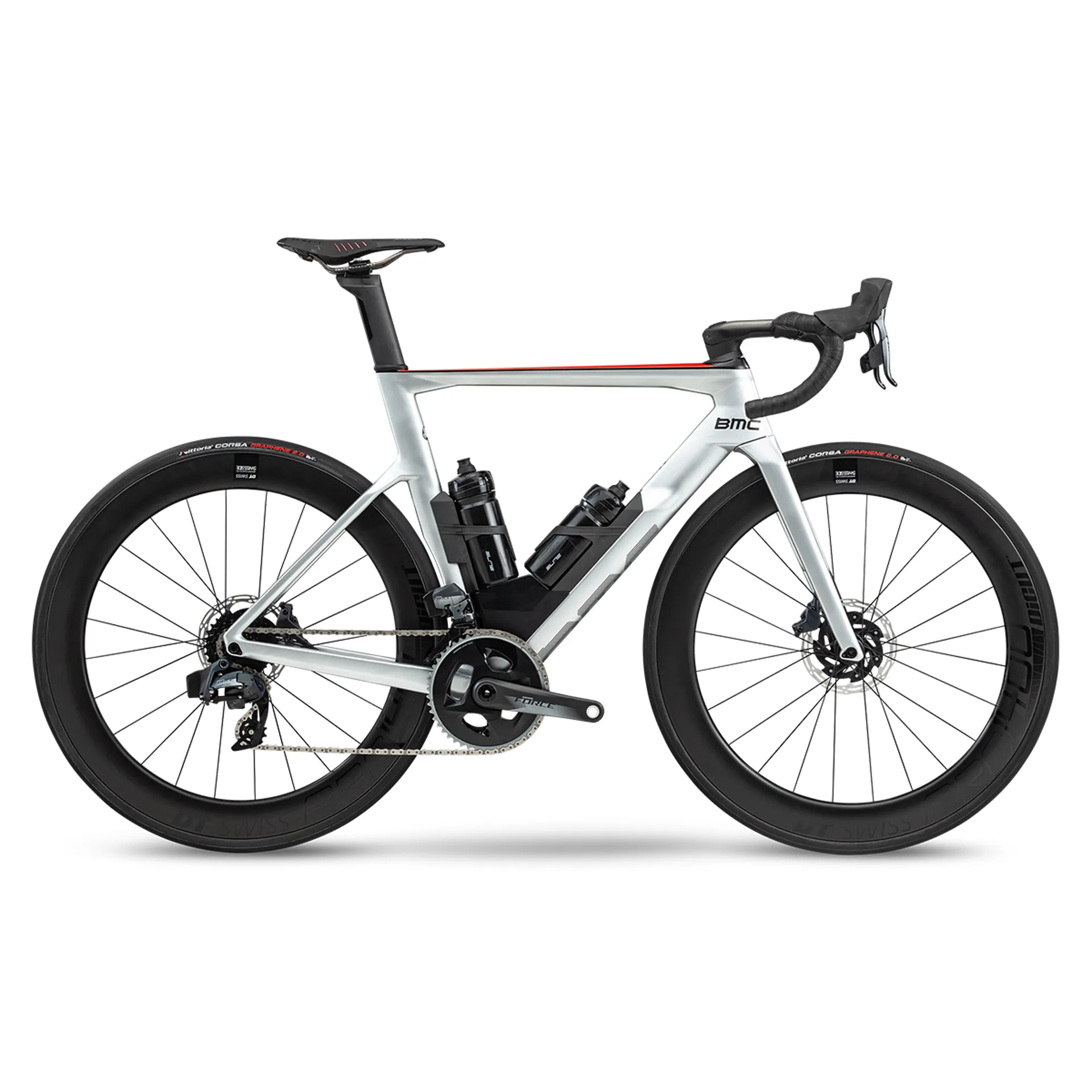

Details TIMEMACHINE ROAD 01 THREE
-
Timemachine Road 01, PF86 bottom bracket, Flat Mount, 12x142mm thru-axle
-
Aerodynamic 01 Premium Carbon, TCC Speed
-
47 / 51 / 54 / 56 / 58 / 61
-
Timemachine Road 01 Aerodynamic Premium Carbon Disc, TCC Speed, Flat Mount w/
-
Caliper Cover, Integrated Cockpit, 12x100mm thru-axle
-
2x12
-
SRAM FORCE AXS 48/35T
-
SRAM FORCE XG-1270, 10-28T
-
SRAM FORCE 12 speed
-
SRAM FORCE eTap AXS
-
SRAM FORCE eTap AXS
-
SRAM FORCE eTap AXS HRD
-
SRAM FORCE eTap AXS HRD
-
BMC ICS Aero, aero top shape, compact bend
-
BMC ICS Aero- Integrated Aero Cockpit Design, w/ computer mount
-
BMC Aero post, 01 premium carbon, p2p
-
Fizik Antares R5 Kium
-
DT Swiss ARC 1400 DICUT db 62 Carbon, Thru Axle (12mm)
-
DT Swiss ARC 1400 DICUT db 62 Carbon
-
Vittoria Corsa, 25mm
-
Silver Metallic
-
Note Tubeless Ready (rim strip installed, valves included)
Frameset
Frame Aerodynamic 01 Premium Carbon Frame, Aero Module, TCC Speed
Fork Aerodynamic 01 Premium Carbon Fork, Integrated Aero Cover, ICS Aero, TCC Speed
Seatpost BMC Aero post, 01 Premium Carbon
Frame Technology ICS Aero, Aero Module, TCC Speed
Sizes 47, 51, 54, 56, 58, 61
Frame Weight 980g*
Fork Weight 410g**
Seatpost Weight 190g***
Integration
Cockpit ICS Aero - Aerodynamic Integrated Cockpit System
2-piece design (handlebar + stem)
+-9 degrees bar rotation adjustment
Garmin/GoPro integrated computer mount (Wahoo-ready with GoPro-compatible mounts )
4 stem sizes: 100, 110, 120, 130mm
3 bar widths: 400, 420, 440mm
Frame Aero Module - Aerodynamic Modular solution for Hydration and Storage
Downtube bottle cage
Seat-tube bottle cage
Aero Box for storage (the inner tool bag fits: 1 inner tube, 1 minitool, 2 tire levers, 1 Co2 cartridge, Co2 Head)
Compatible with standard Bottle cages
Internal cable management
Integrated seat clamp
Di2 Junction Box integrated in the frame
Fork Integrated Aero Cover
Removable for caliper adjustment
Brake Direct frontal flat mount disc brake, UCI compliant (160mm only)
Technical details
Frame 12x142mm thru-axle
Fork ICS Specific
Integrated Aero Cover
Direct frontal flat mount disc brake (160mm only)
12x100mm thru-axle
Tapered steerer 1-1/8” a 1-1/4”
Seatpost Adjustable offset 0, 15, 30mm
Bottom Bracket PF86 bottom bracket
Brakes (F) Direct frontal Flat Mount (160mm only);
(R) Flat Mount Standard 140/160mm
Drivetrain Braze-on front derailleur mount, Replaceable ultra light sandwich rear derailleur hanger
Tires Designed for 25mm, maximum 28mm****
Misc. Ultra Light Thru-Axle Design (F&R=55g)
