SPECS Specifications subject to change without notice.
FRAME Specialized A1 Premium Butted Alloy, 24 Trail Geometry,
integrated down tube battery, internal cable routing, 148mm
spacing, UDH compatible

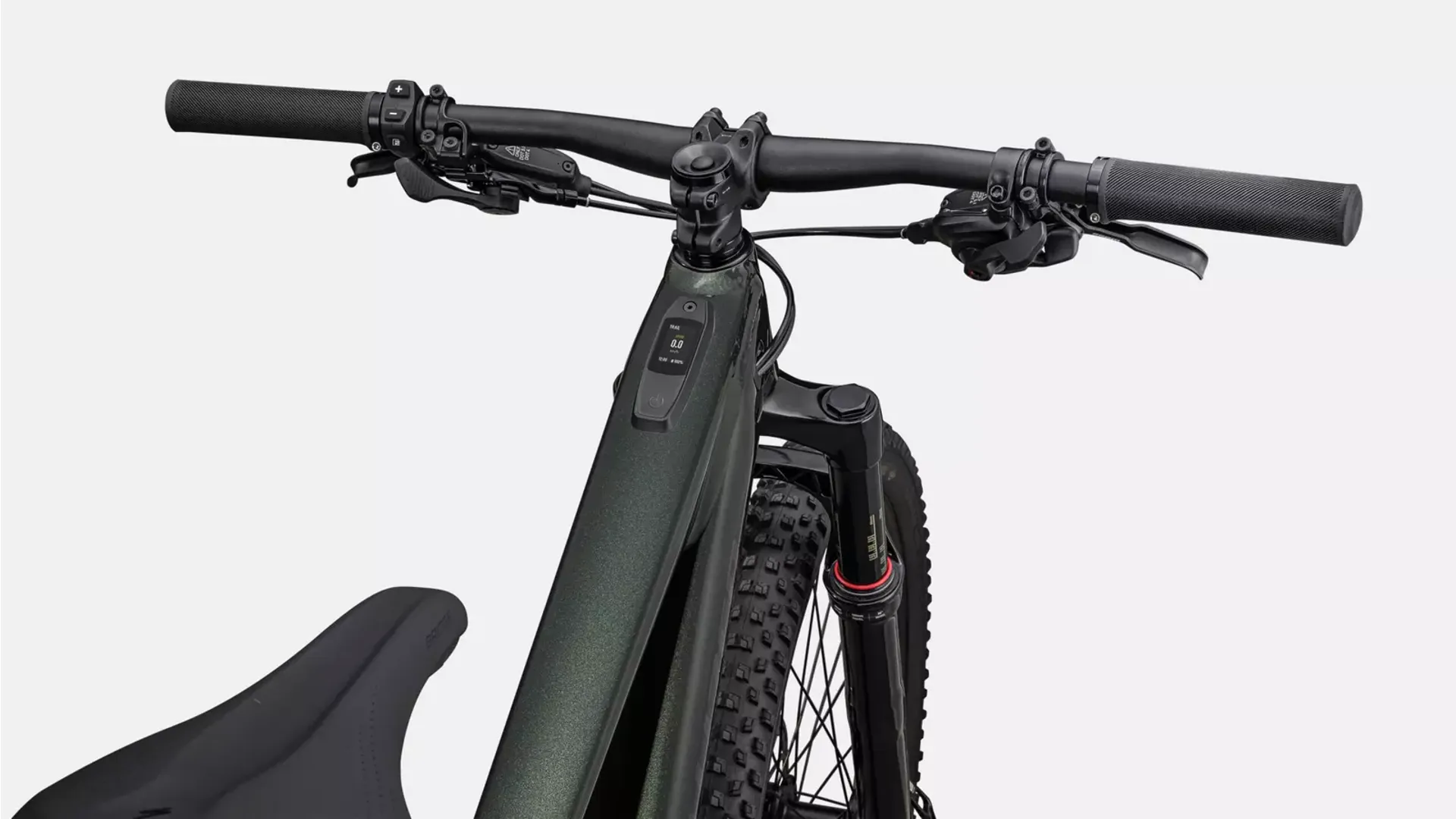

HANDLEBARS Double-butted alloy, 9-degree backsweep, 31.8mm bar diameter,
660mm width
FORK SRAM Reba 26, 40mm offset, 100mm travel, 15x100mm spacing
STEM Specialized, Forged alloy, 4-bolt, 6-degree rise, 35mm length
GRIPS Specialized Trail Grips, lock-on
FRONT BRAKE SRAM Level T, Post Mount, 160mm
REAR BRAKE SRAM Level T, Post Mount, 160mm
SHIFT LEVERS SRAM NX, 11-speed
REAR DERAILLEUR SRAM NX, 11-speed
CHAIN SRAM PC-1110, 11-speed w/ PowerLock
CRANKSET SRAM X1 155mm
CASSETTE SRAM PG-1130, 11-speed, 11-42t
CHAINRINGS SRAM X-Sync Eagle, 104 BCD, 32T
PEDALS VP-227, PP body w/ metal traction pins, Double sealed ball
bearings
RIMS Specialized Alloy, Tubeless Ready, 25mm internal width, 32h
FRONT HUB Specialized, sealed cartridge bearings, 15x110mm spacing, 32h
REAR HUB Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h
FRONT TIRE Ground Control, Control Casing, 24x2.35"
SPOKES Stainless, 14g
REAR TIRE Ground Control, Control Casing, 24x2.35"
INNER TUBES Presta, 32mm valve
SADDLE Specialized bridge sport 130 mm
SEAT BINDER Specialized Alloy, 34.9mm
SEATPOST TranzX Dropper, 30.9mm, 80mm travel, 0mm offset, 315mm
length

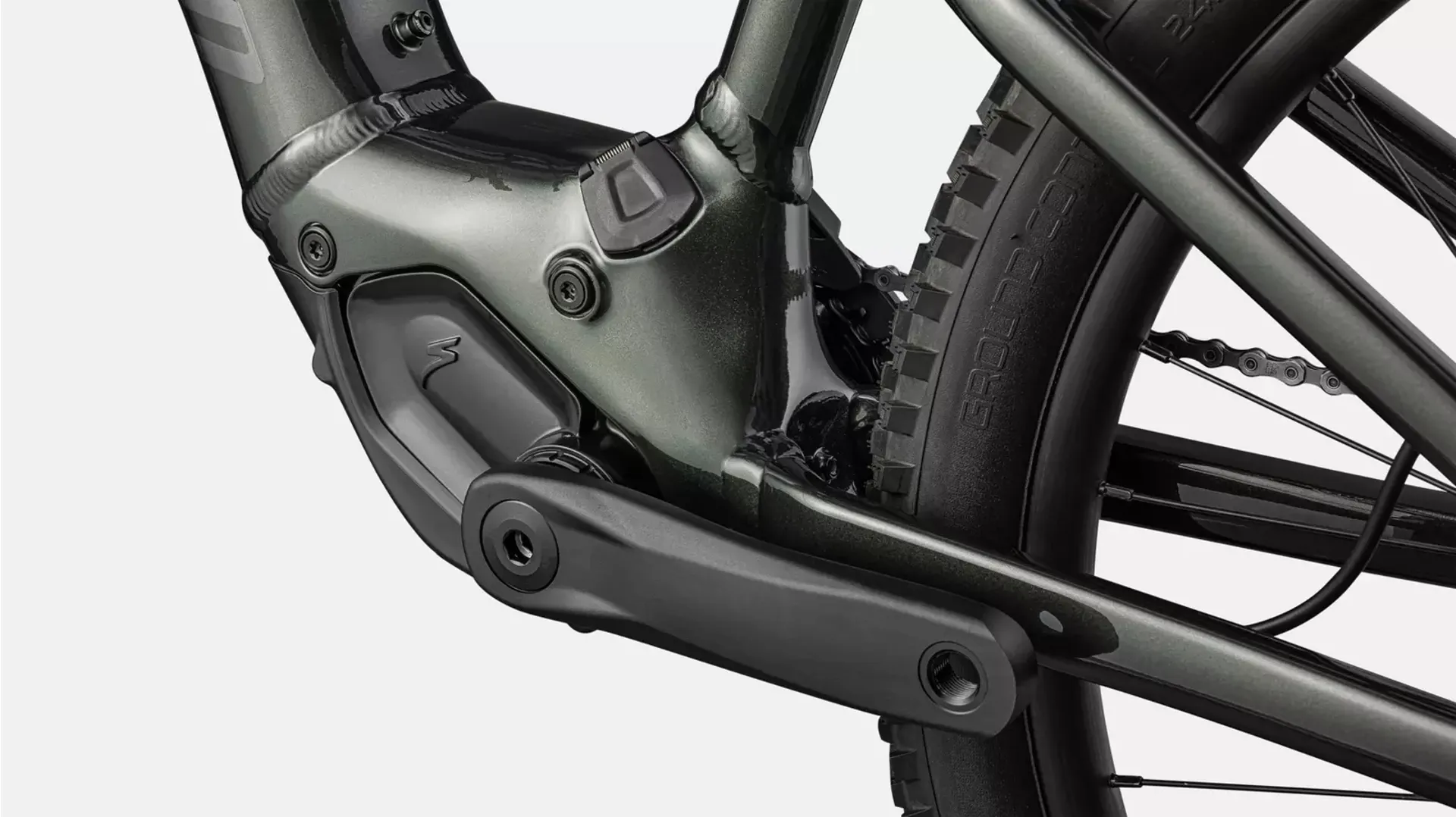

MOTOR New Specialized 1.2 SL Custom Rx Trail Tuned Motor

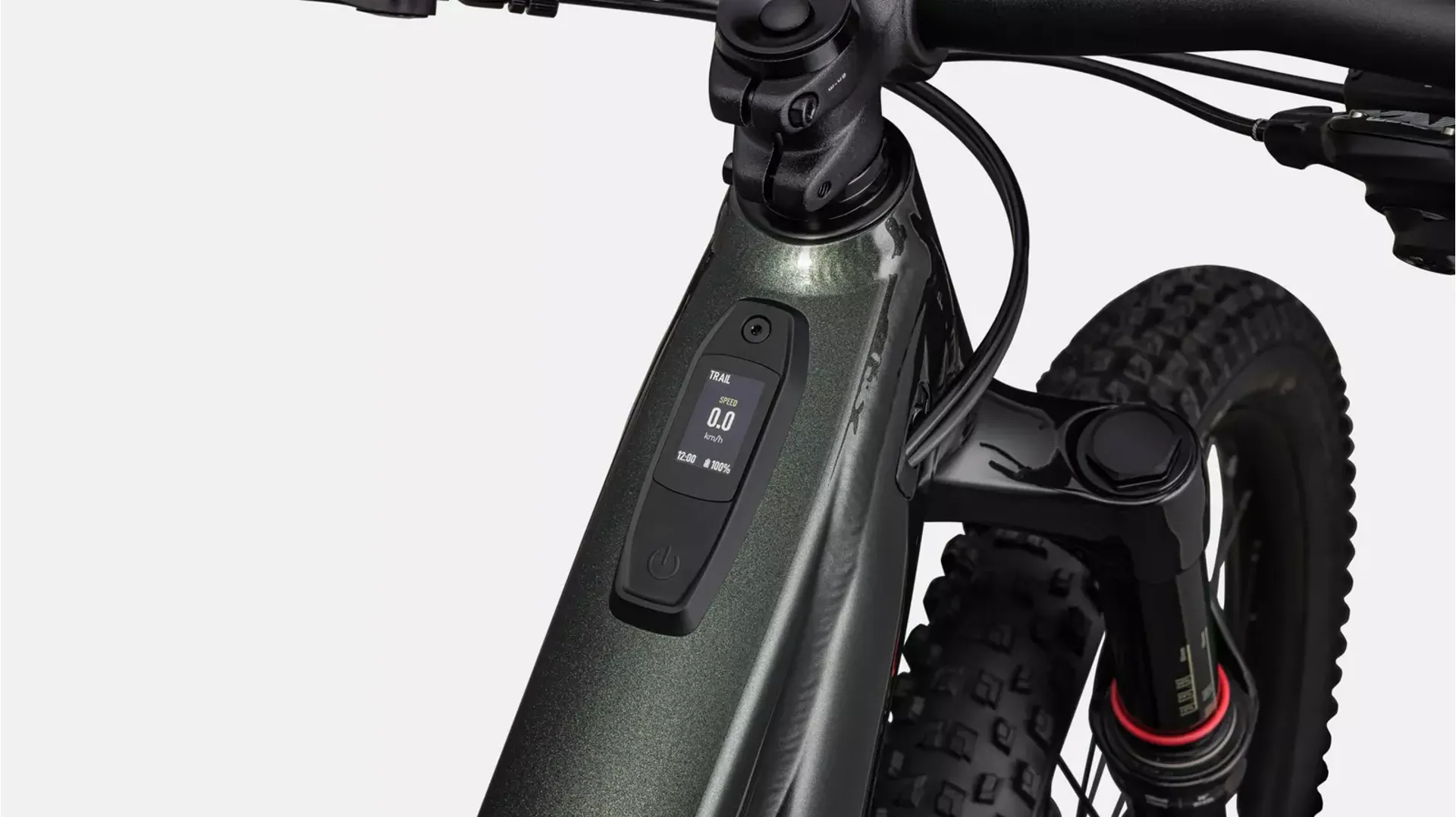

UI/REMOTE Specialized TCU, 10-LED State of charge, 3-LED Ride Mode
display, ANT+/Bluetooth®, w/Handlebar remote
BATTERY Specialized SL1-320, fully integrated, 320Wh
CHARGER Custom charger, 48V System w/ SL system charger plug
WIRING HARNESS Custom Specialized wiring harness
