Details
Frameset

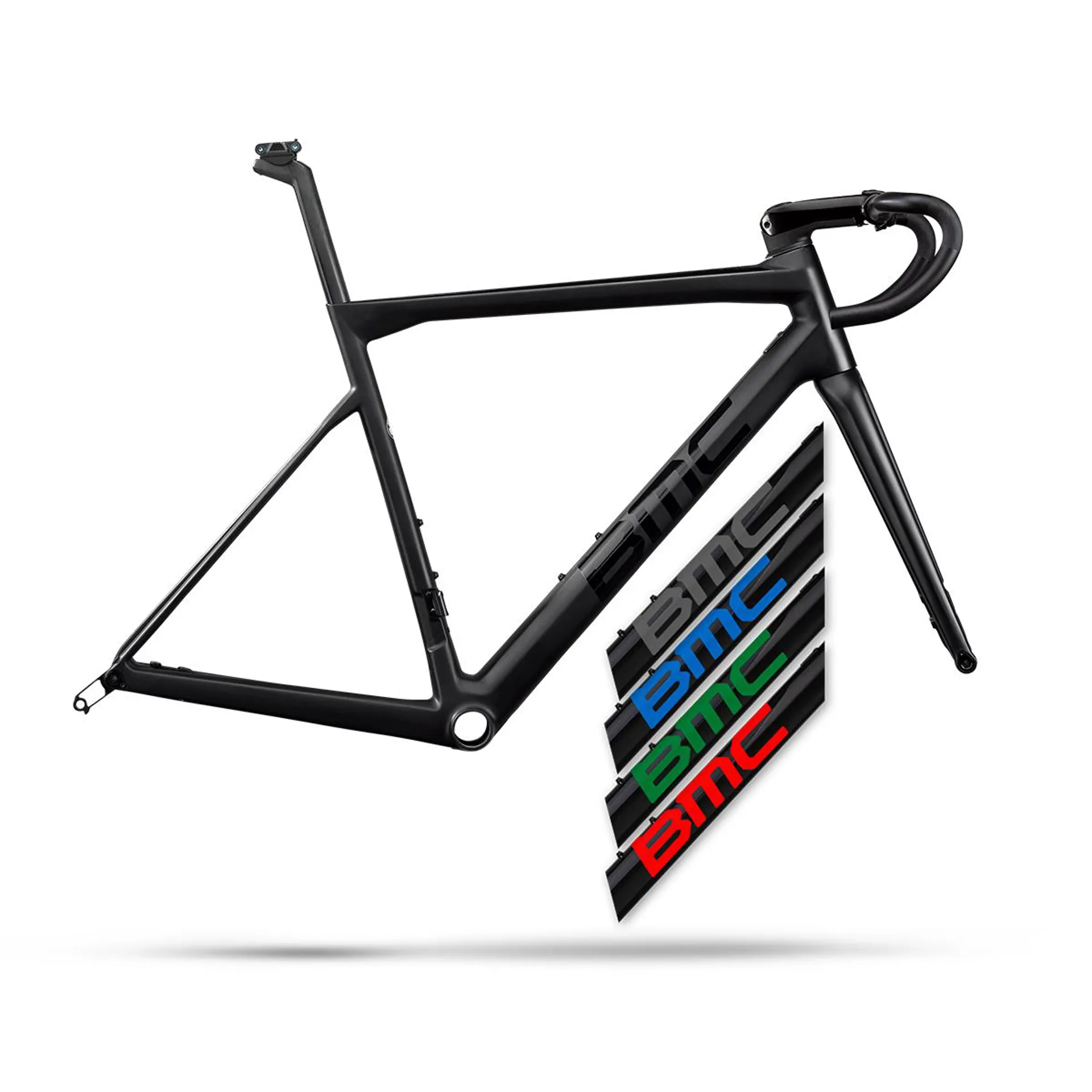

Frame Teammachine SLR01
Premium Carbon Frame, Disc-specific
Fork Teammachine SLR01 Premium Carbon
Fork, Integrated Cockpit, Disc-specific
Seatpost Teammachine SLR01 Premium
Carbon “D” Compliance post
Frame Technology Advanced Composite Evolution (ACE)
Technology, Tuned Compliance Concept
(TCC) Race
Sizes 47 / 51 / 54 / 56 / 58 / 61
Frame Weight 815g*
Fork Weight 355g**
Seatpost Weight 195g***
Integration
Cockpit Integrated Cockpit Design,
w/ computer and camera mount
Frame Internal cable management
Integrated seat clamp
Di2 Junction Box integrated in the frame
Brake Direct Frontal Flat-Mount
Technical details
Frame 12x142mm thru-axle
Fork ICS Specific
Direct frontal flat mount disc brake
(160mm only)
12x100mm thru-axle
Tapered steerer 1-1/8” to 1-1/2
Seatpost 15mm offset
(0mm offset available as spare part)
Bottom Bracket PF86
Brakes (F) Direct frontal flat mount (160mm only);
(R) Flatmount Standard 140/160mm
Drivetrain Braze-on front derailleur mount, replaceable
ultra light sandwich rear derailleur hanger
Tires Designed for 25mm, maximum 28mm****
Misc. Ultra Light Thru-Axle Design (F&R=55g)
